3001
| Introduction date: | 1974 | |
| Type: |
Microprogram Control Unit |
|
| Memory: | ||
| Technology: | Shottky Bipolar LSI circuit | |
| Number of transistors: | ? (6 microns) | |
| History: |
The 3001 is a part of the Schottky Bipolar LSI Microcomputer Set (see Intel
3002) and controlls the sequence in which microinstructions are fetched. |
|
| Second source: | Signetics was the only second source to Intel 3001. Russian clones was also made. |
| Intel | |||||
| C3001 | |||||
 |
|||||
| N.D.C | |||||

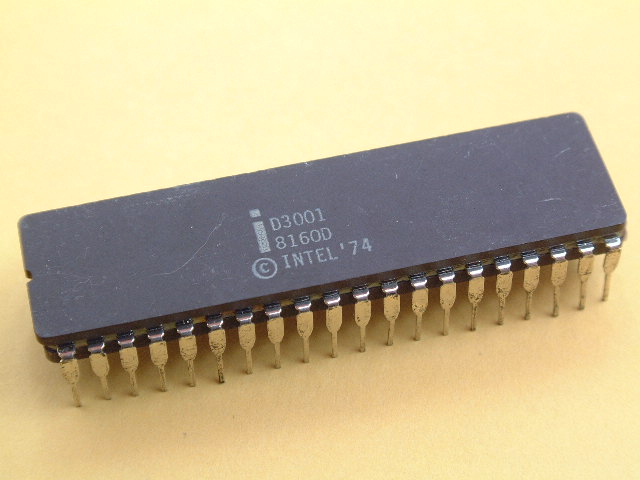

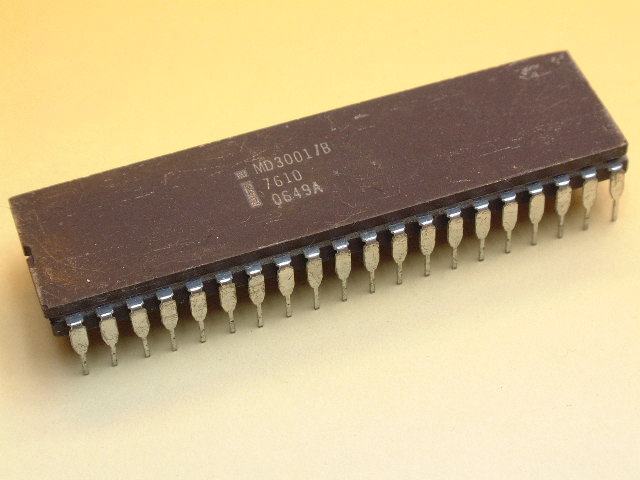

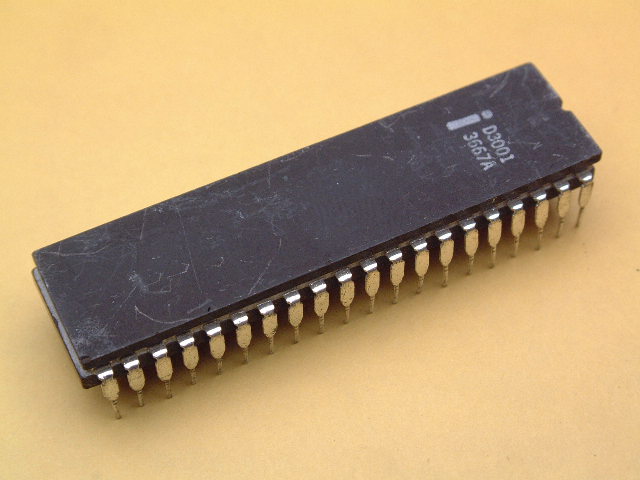

| MD3001/B | D3001 | D3001 | |||
 |
 |
 |
|||
| Malaysia 7810 |
Malaysia 7710 |
Philippines 8019 |
Datasheet:
Intel3001.pdf (478K)
