MOS Technology CPU's

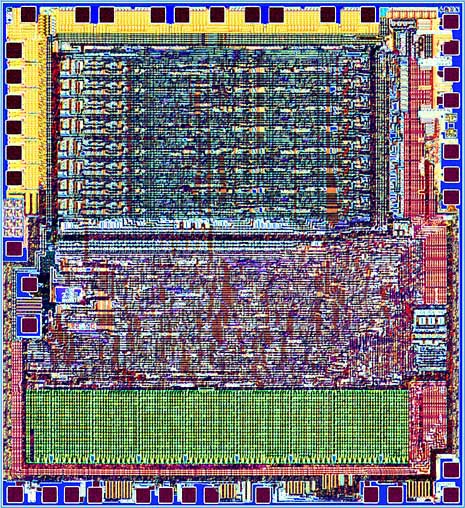

6502 die core
| Introduction date: | 1975 | |
| Category: | 8-bit microprocessor | |
| Frequency: | 1MHz | |
| Technology: | N-Channel Silicon Gate Depletion Load Technology | |
| Number of transistors: | 9000 | |
| Addressable memory: | 64Kbyte | |
| Number of instructions: | 56 instructions with twelve 8-bit registers | |
| History: |
The 6502 CPU is bus compatible with Motorola 6800 and was used in many popular computers like Commodore and Atari plus many
more. |
|
| Second source: | Atari, CMD, NCR, NTE, Rockwell, Synertec and UMT. |
| MOS Technology | |||||

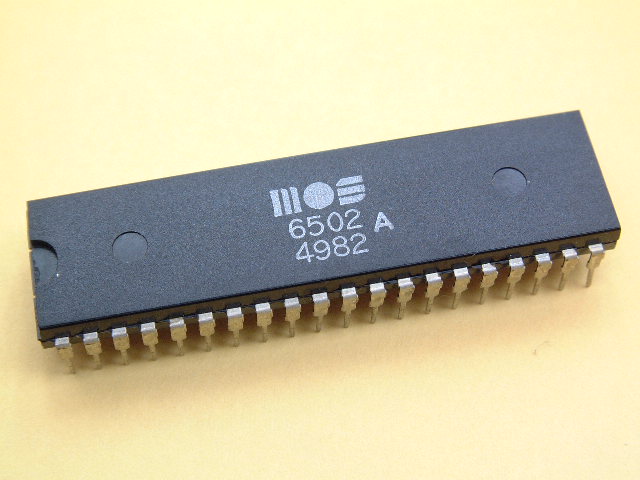

| MCS6502 | 6502A | ||||
 |
 |
||||
| 7615 | 8249 | ||||
| California Micro Devices | |||||

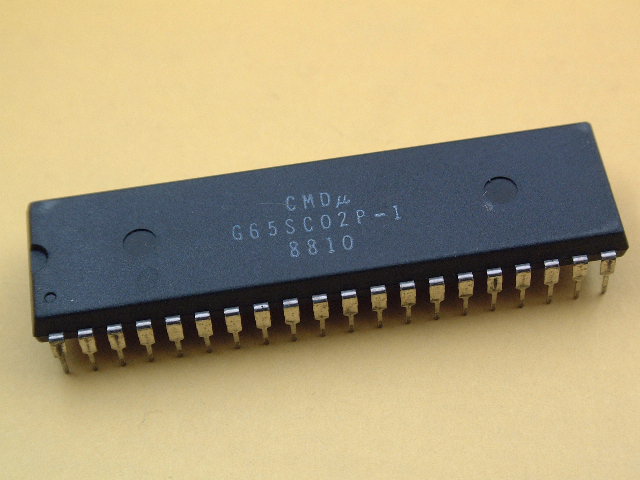

| G65SC02P-1 | |||||
 |
|||||
| 8810 | |||||
| GTE | |||||

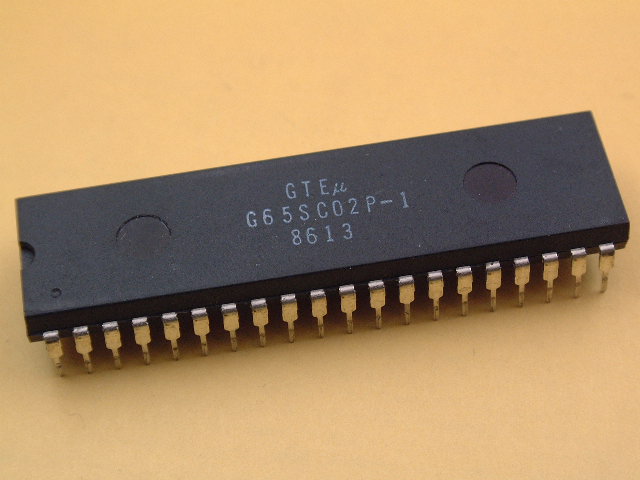

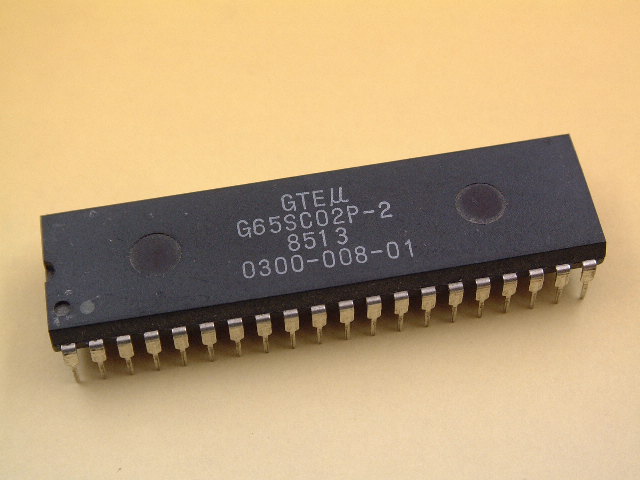

| G65SC02P-1 | G65SC02P-2 | ||||
 |
 |
||||
| 8613 | 8513 |
| NCR | |||||

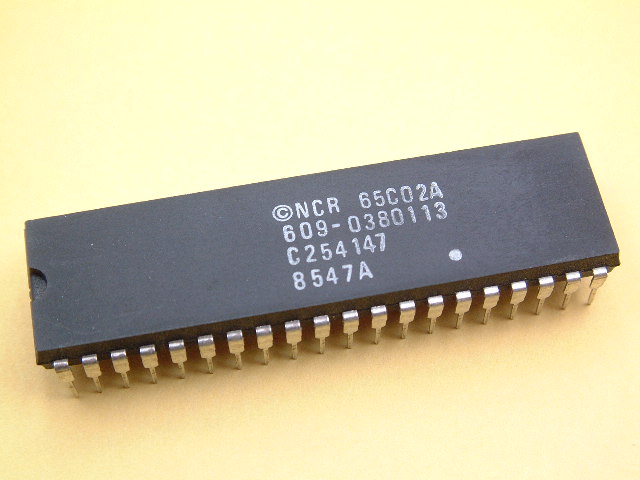

| 65C02A | |||||
 |
|||||
| 8547 |
| Rockwell | |||||

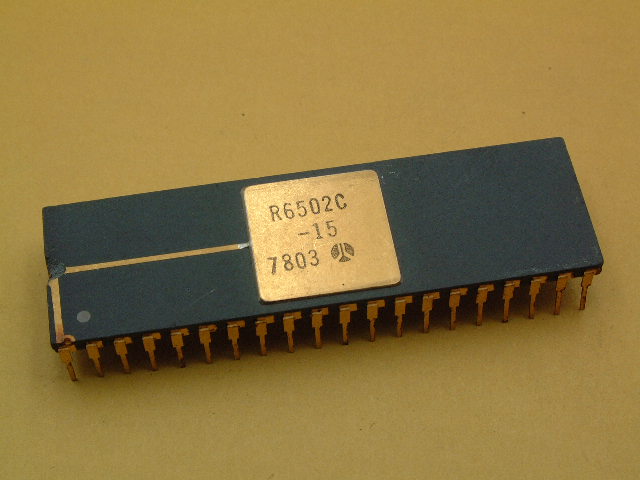

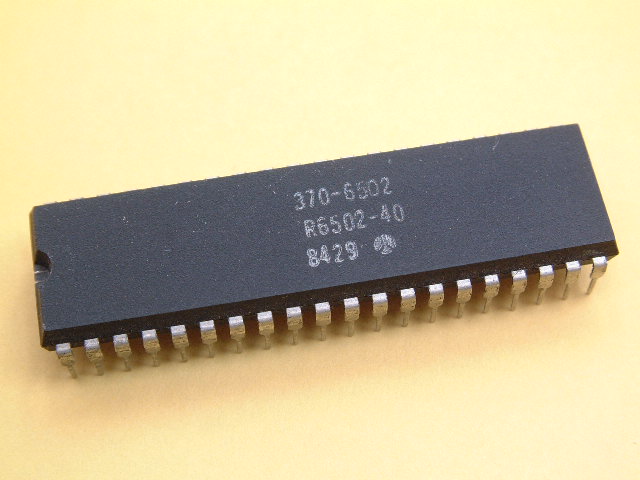

| R6502C-15 | R6502-40 | ||||
 |
 |
||||
| 7803 | 8429 |
| Synertec | |||||

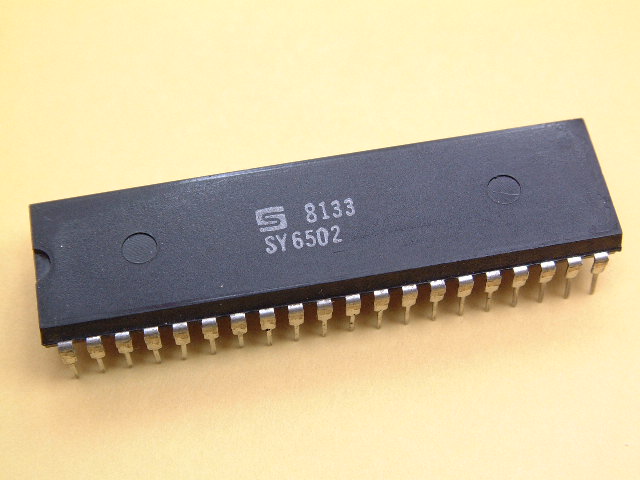

| SY6502 | |||||
 |
|||||
| 8133 |
