8086
MCS-86
| Introduction date: | March 1978 | |
| Category: | 16-bit microprocessor | |
| Frequency: | 5MHz | |
| Technology: | HMOS | |
| Number of transistors: | 29000 (3 Microns) | |
| Addressable memory: | 1Mbyte | |
| Number of instructions: | 135 instructions with eight 8-bit registers and eight 16-bit registers | |
| History: |
Intel’s 8086 was a
major advancement in 1978. The chip brought the x86 instruction set that’s still
present on x86-compatible chips today |
|
| Second source: |
AMD, Fujitsu, Harris, HMS, Mitsubishi, NEC, OKI, Siemens and Russian clones |
| Intel | |||||

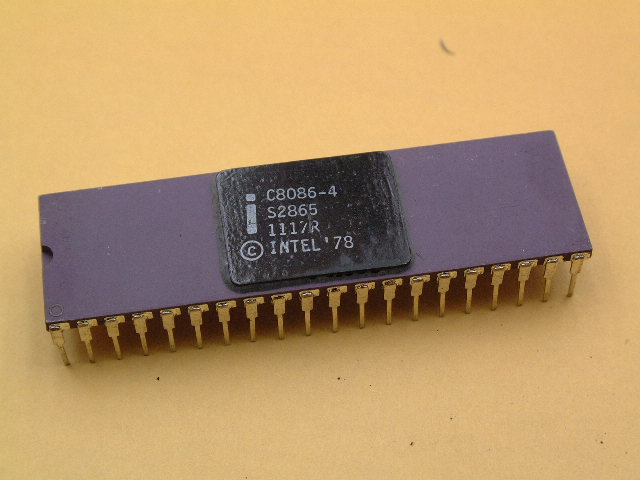

| C8086 | C8086-4 | ||||
 |
 |
||||
| 7835 | 7830 |

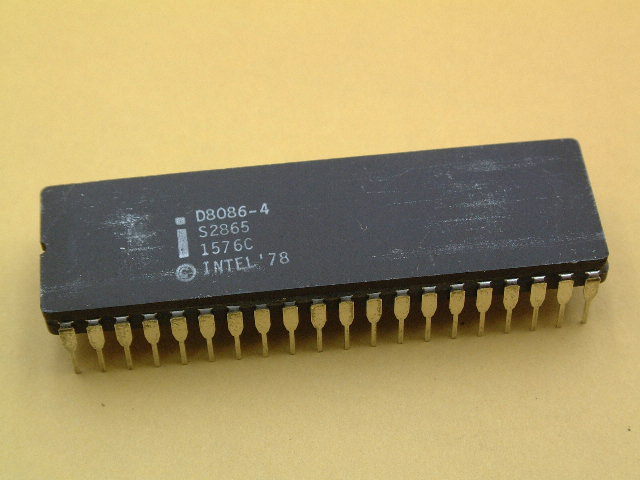

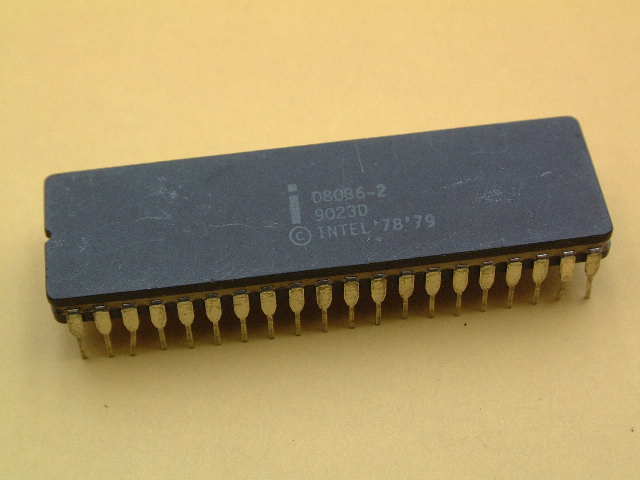

| D8086 | D8086-1 | D8086-2 | D8086-4 | ID8086 | LD8086 |
 |
 |
 |
 |
 |
 |
| 8605 | 7840 | 8225 |

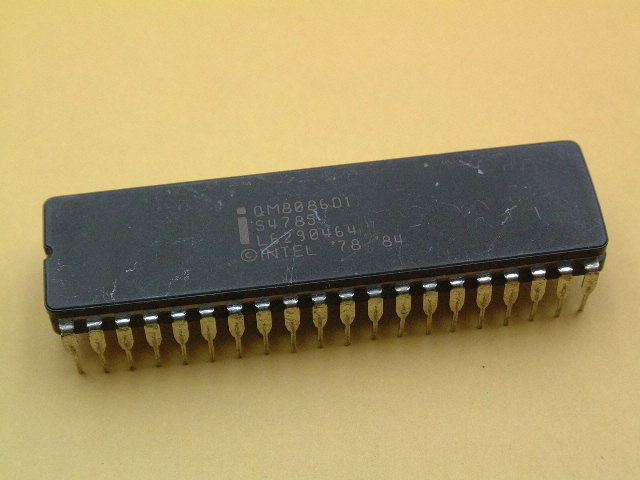

| QD8086 | QD8086-2 | QM8086D1 | |||
 |
 |
 |
|||
| 8647 | 8627 |

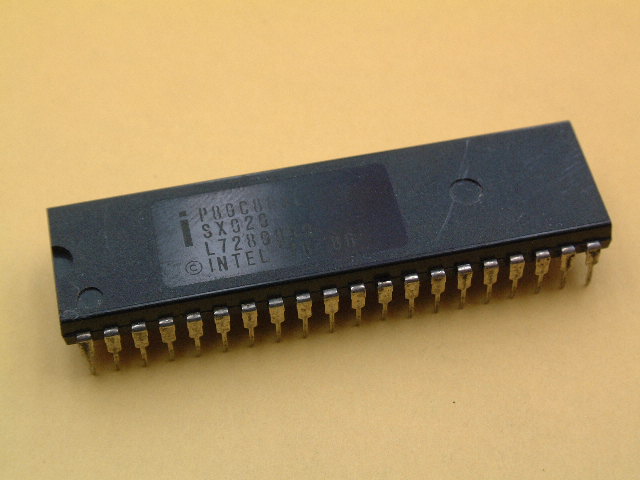

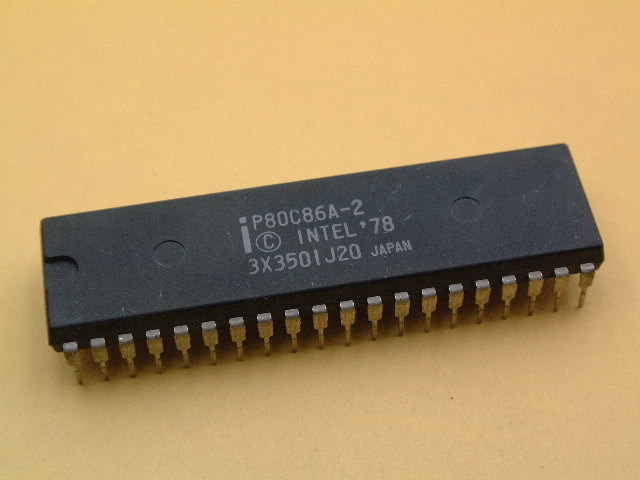

| P8086 | P8086-2 | P80C86A-2 | P80C86AL | P80C86AL-2 | |
 |
 |
 |
 |
 |
|
| AMD | |||||
| P8086-1 | |||||
 |
|||||
| 8735 |
| Fujitsu | |||||

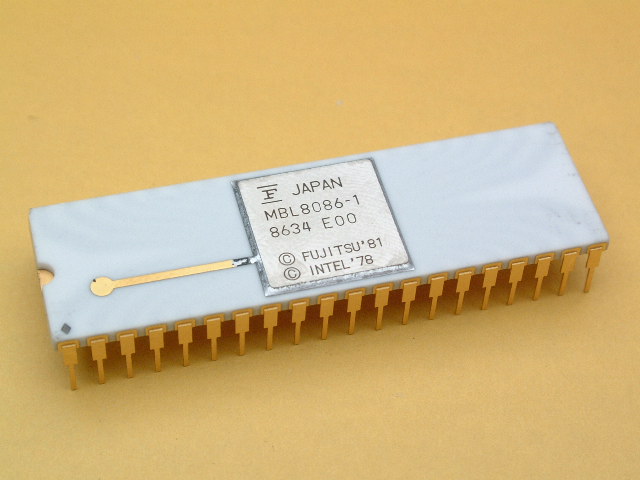

| MBL8086-1 | MBL8086-2 | MBL8086-2 | |||
 |
 |
 |
|||
| 8634 | 8345 | 8649 |
| Mitsubishi | |||||
| M5L8086S | |||||
 |
|||||
| 8337 |
| Siemens | |||||
| SAB8086-1-C | SAB8086 O-C | SAB80862P | |||
 |
 |
 |
|||
| 8712 | 8201 | 8834 |
| CCCP | |||||

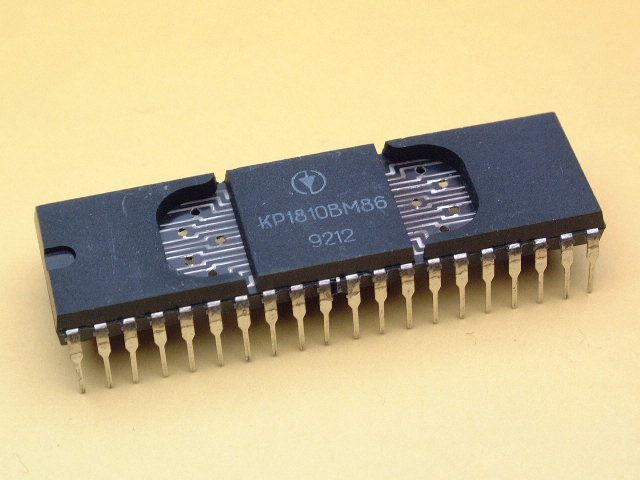

| KP1810BM86 | KP1810BM86 | ||||
 |
 |
||||
| 8906 | 9212 |
Intel MCS-86
Microcomputer System Prototype Kit
|
|
The kit includes: | |
| C8086-4 P8259A P8284 P8282 P8251 B2616 P2142-3 8205 7400 7404 7474 1488 1489 |
CPU Prpgrammable Interrupt Controller Clock Generator 8-Bit Input/Output Ports Programmable Communication Interface 2Kx8 Factory Programmable Prom 1024x4 Bit Static Ram High Speed 1 Out Of 8 Binary Decoder Quad 2-Input NAND Gate Hex Inverter 4-Bit D-Type Latch RS-232C Quad Line Driver RS-232C Quad Line Receiver |
|
