6800
| Introduction date: | 1974 | |
| Category: | 8-bit Microprocessor | |
| Frequency: |
6800 1.0MHz 68A00 1.5MHz 68B00 2.0MHz 68H00 2.5MHz |
|
| Technology: | N-Channel silicon-gate depletion load MOS technology | |
| Number of transistors: | ||
| Addressable memory: | 64Kbyte | |
| Number of instructions: | 72 | |
| History: |
The 6800 was developed as an enhancement of the Intel 8008. |
|
| Second source: |
Atari, AMI, Fairchild, Hitachi and ST. |
| Motorola | |||||

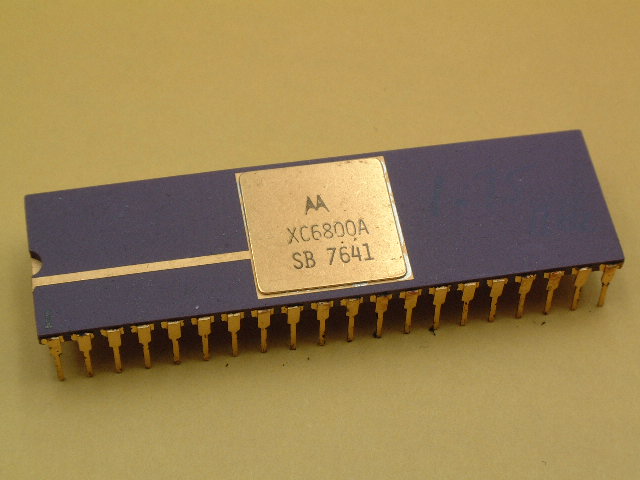

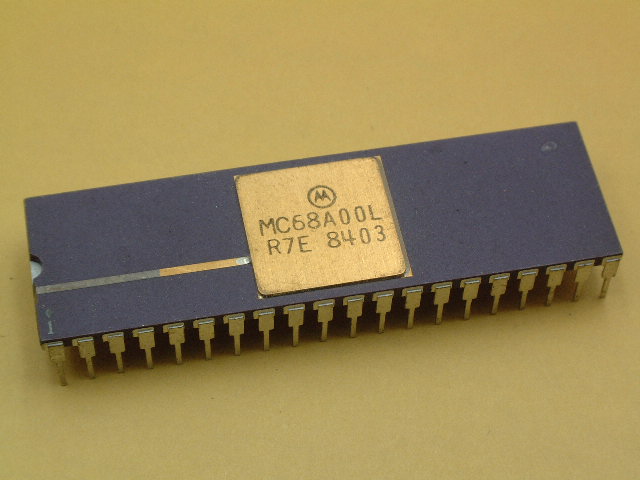

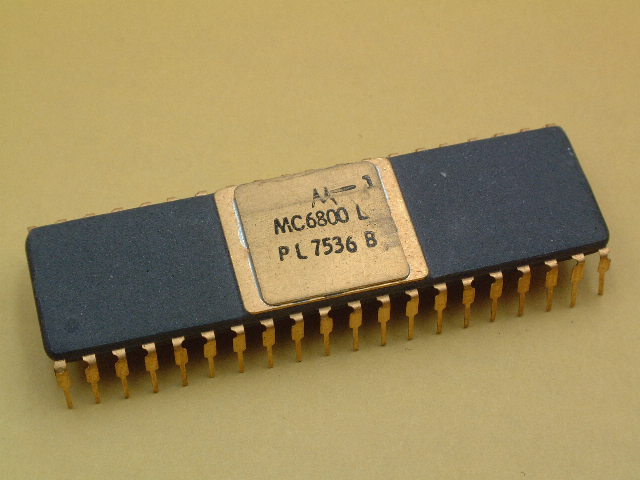

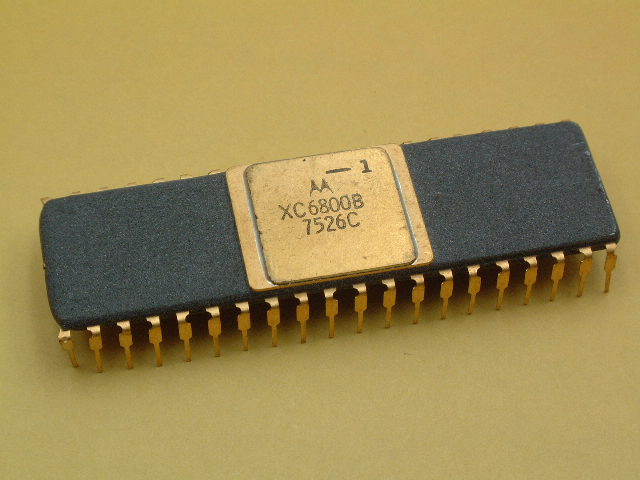

| XC6800B | XC6800B | XC6800A | MC6800L | MC68A00L | |
 |
 |
 |
 |
 |
|
| 7526 | 7546 | 7641 | 7536 | 8403 | |

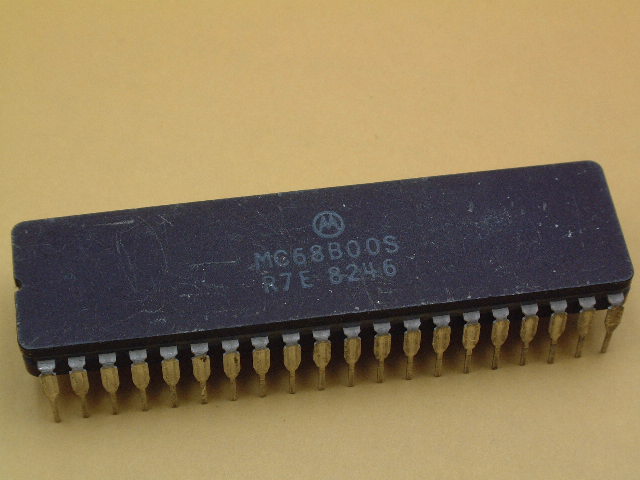

| MC68B00S | |||||
 |
|||||
| 8246 |
| ATARI | |||||

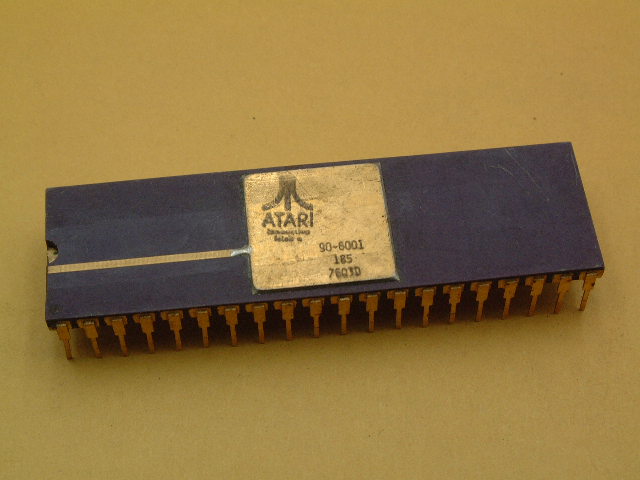

| 90-6001 | |||||
 |
|||||
| 7603 |
| Fairchild | |||||

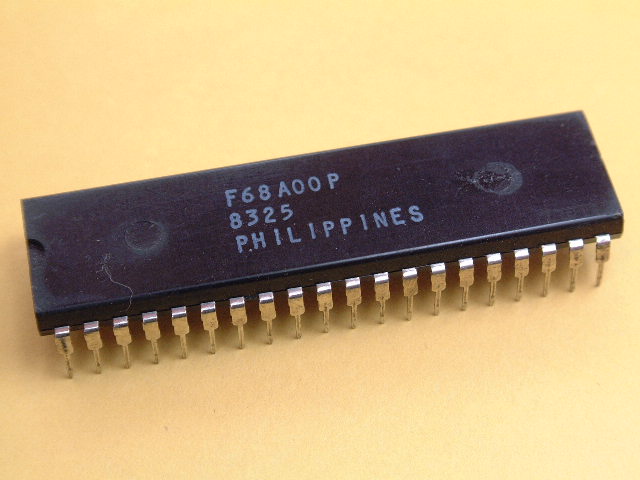

| F68A00P | |||||
 |
|||||
| PHILIPPINES 8325 |
| Hitachi | |||||

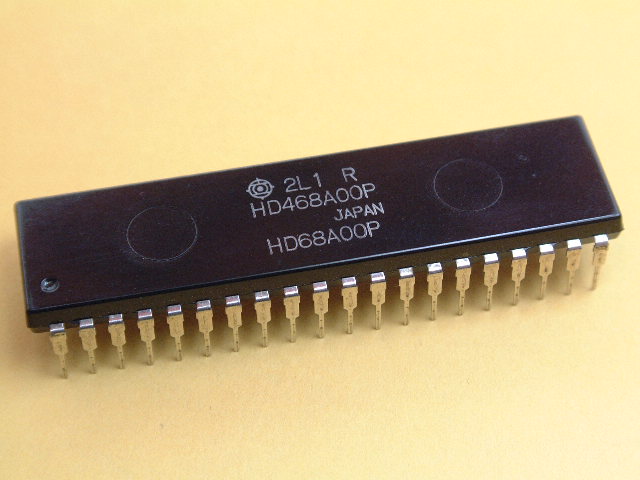

| HD68A00P | |||||
 |
|||||
| 8420 |
