4004
MCS-4 Family
Worlds first processor to be etched into a single piece of silicon.

Highslide JS
(4004 die core)

Intel 4004 die core.



Introduction date:   November 15, 1971
Category:   4-bit microprocessor (8-bit instructions)
Frequency:   500KHz - 740KHz
Technology:   P-channel silicon gate MOS technology
Number of transistors:   2,300 (10 microns)
Addressable memory:   4096x8-bit ROM and 1280x4-bit RAM

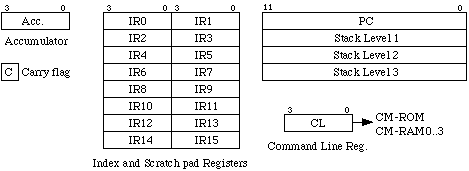

Number of instructions:   45 with a 4 level stack and sixteen 4-bit (or eight 8-bit) registers
History:






 		   In 1969 Busicom asked Intel to design a set of chips to be used in a new high perfomance calculator.
Ted Hoff, Federico Faggin and Stan Mazor came up with a design that involved a central processing unit, 4004 (CPU)
a read-only memory, 4001 (ROM) a random access memory, 4002 (RAM) and a shift register, 4003 (I/O).
The CPU was eventually to be called a microprocessor.
Later Intel negotiated for a return of the rights for the chips, wish had gone to Busicom in the original contract.

Please see MCS-4 section for more info on chipset.

Second source:   National Semiconductors was the only second source to Intel 4004.
4004 4-bit Central Processor Unit
C4004 C4004 C4004 C4004 C4004 C4004
Highslide JS

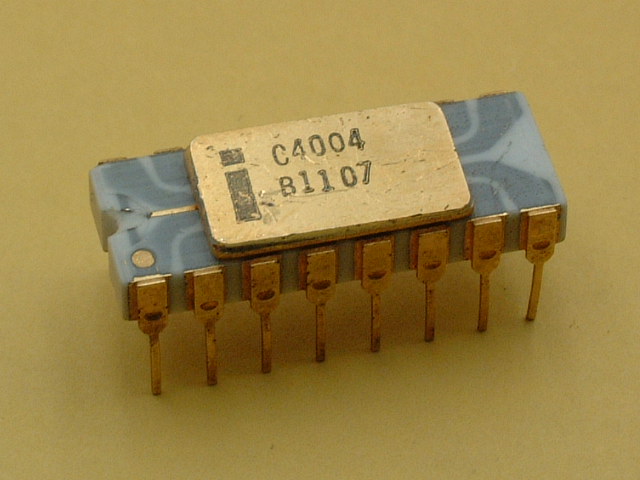

Intel C4004 gray traces ceramic package.
Highslide JS
Intel C4004 gray traces ceramic package.
Highslide JS

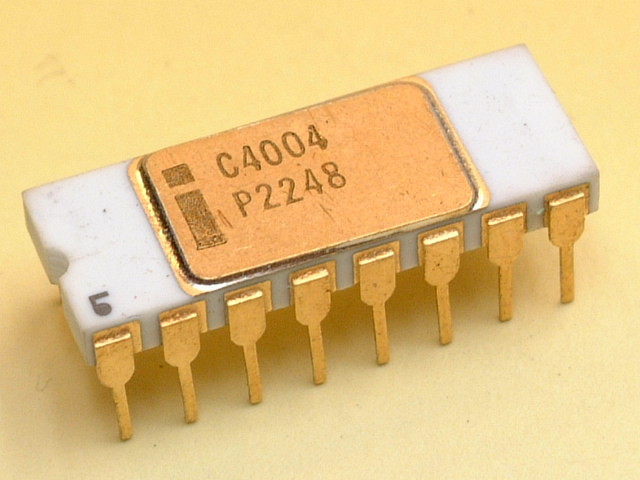

Intel C4004 white ceramic package.
Highslide JS

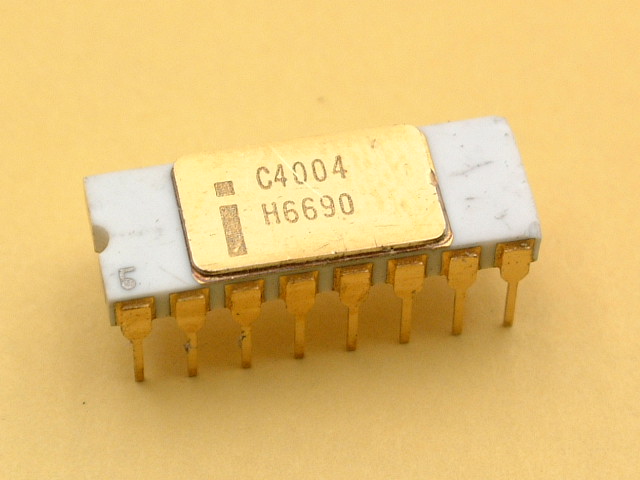

Intel C4004 white ceramic package.
Highslide JS
Intel C4004 white ceramic package.
Highslide JS
Intel C4004 white ceramic package.
N.D.C

 		 Malaysia
7512
 		 N.D.C

 		 PHILIPPINES
7534
 		 Malaysia
7539
NEW!		 PHILIPPINES
7635


C4004 C4004 C4004 G
Highslide JS
Intel C4004 white ceramic package #5 marking.
Highslide JS
Intel C4004 white ceramic package  with ground strap.
Highslide JS
Intel C4004 white ceramic package.

Malaysia
N.D.C
 		 HONG KONG
7614
 		 Malaysia
7647
NEW!

D4004
Highslide JS
Intel D4004 gray ceramic package.

Malaysia
8101

P4004 P4004
Highslide JS

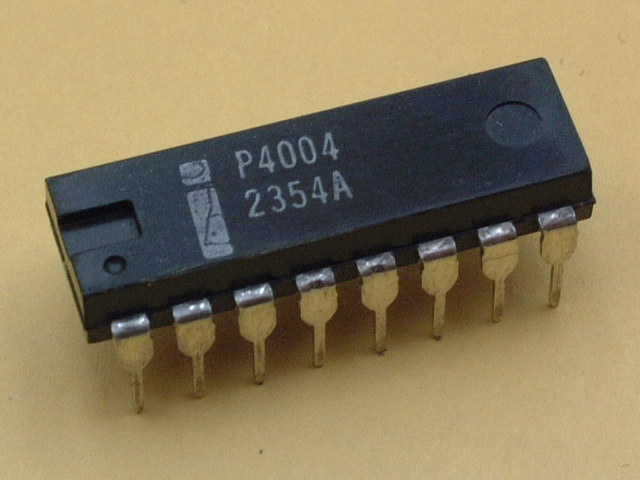

Intel P4004 black plastic package.
Highslide JS
Intel P4004 black plastic package.

PHILIPPINES
7641		 Malaysia
7645



National Semiconductor
INS4004D INS4004D INS4004D
Highslide JS

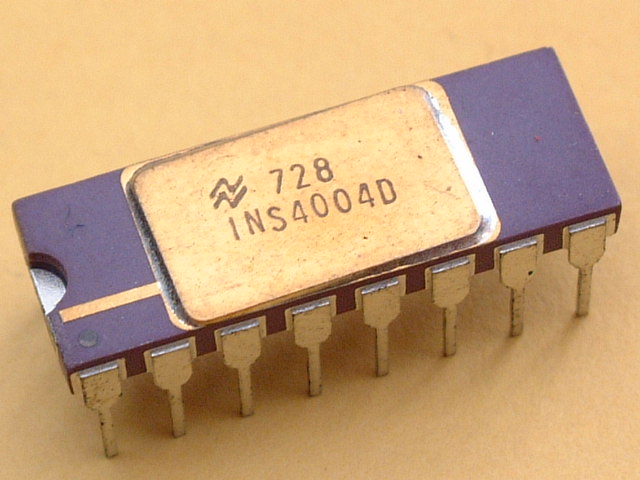

National Semiconductor INS4004D purple ceramic package with ground strap.
Highslide JS
National Semiconductor INS4004D purple ceramic package.
Highslide JS

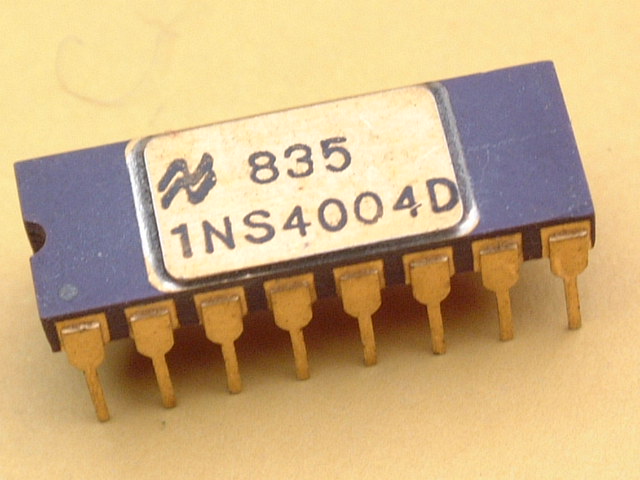

National Semiconductor INS4004D purple ceramic package printing upside down.

7728
 		 Printed: 1NS4004D
7835		 Printed: 1NS4004D
upside down
7835

INS4004J
Highslide JS

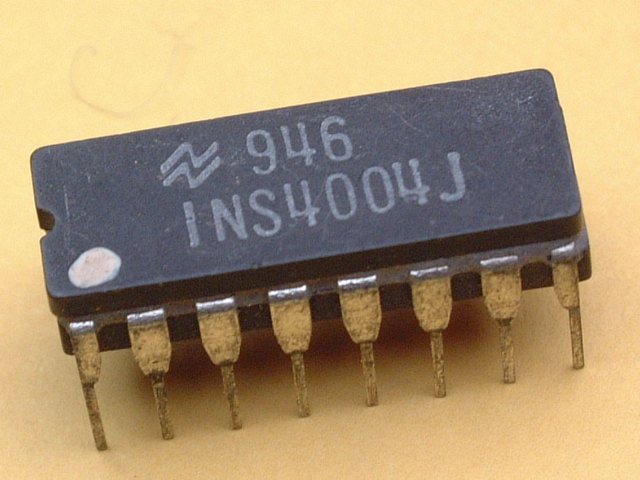

National Semiconductor INS4004J gray ceramic package.
