4002

Introduction date:		1971
Type:		320-bit MOS RAM and 4-bit output port.
Memory:		80 x 4-bit
Technology:		P-channel silicon gate MOS technology
Number of transistors:
History:		The 4002 was designed to be used with other MCS-4/40 devices such as the 4004 CPU. The chip was available in two different metal options 4002-1 and 4002-2 this was to make it possible to extend the chip selection so that 4pcs of 4002 chips could be connected to the 4004 CPU without any external chip selection logic.

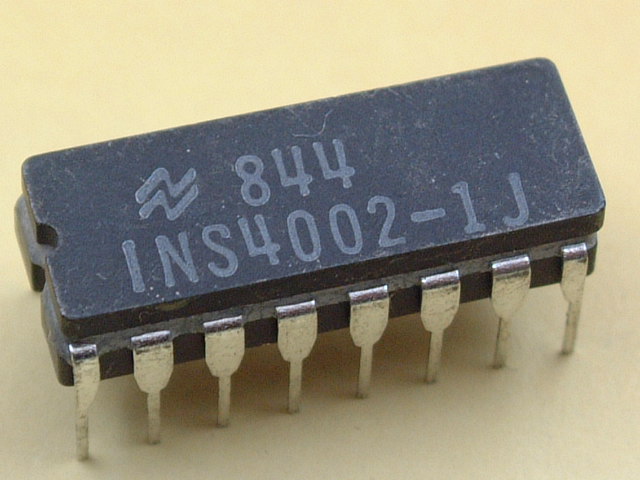

Second source:		National Semiconductors was the only second source.

Intel
C4002-1	C4002-1	C4002-1	C4002-1	C4002-1	C4002-1

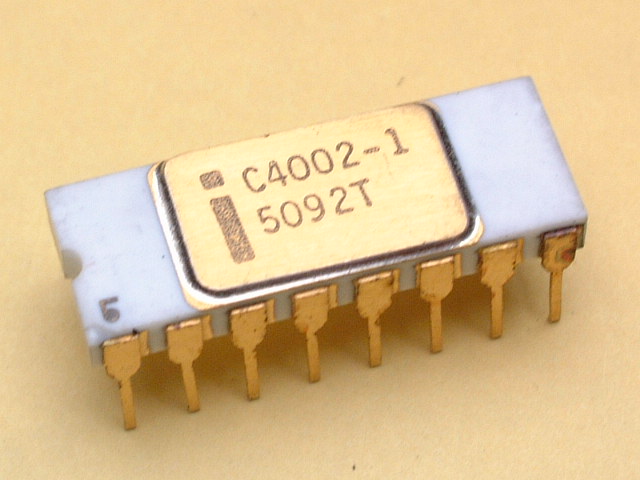

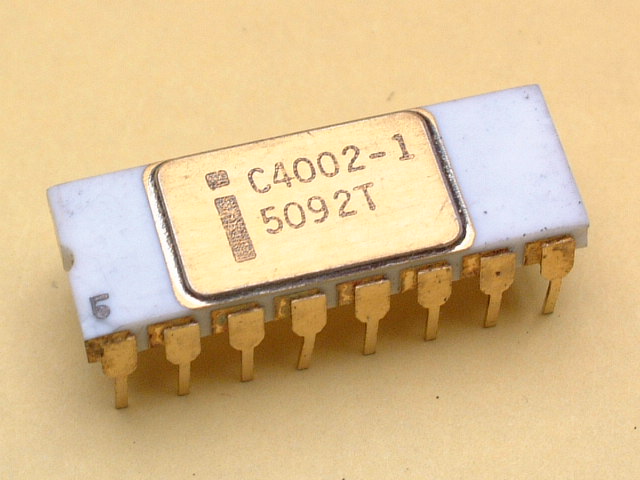

Intel C4002-1 gray traces ceramic package.	Intel C4002-1 white ceramic package.	Intel C4002-1 white ceramic package.	Intel C4002-1 white ceramic package.	Intel C4002-1 white ceramic package.	Intel C4002-1 white ceramic package.
N.D.C	Malaysia 7506	Malaysia 7538	Malaysia N.D.C	USA 7652	Malaysia 7601

C4002-1
Intel C4002-1 white ceramic package.
USA 7640

C4002-2	C4002-2	C4002-2
Intel C4002-2 white ceramic package.	Intel C4002-2 white ceramic package.	Intel C4002-2 white ceramic package.
Malaysia N.D.C	Malaysia N.D.C	Philippines 7637

D4002-1	D4002-2
Intel D4002-1 gray ceramic package.	Intel D4002-2 gray ceramic package.
Malaysia 7641	Philippines 8181

P4002-1	P4002-1	P4002-1
Intel P4002-1 gray plastic package.	Intel P4002-1 gray plastic package.	Intel P4002-1 black plastic package.
N.D.C	Philippines 7506	Philippines 7829

P4002-2	P4002-2	P4002-2	4002-2

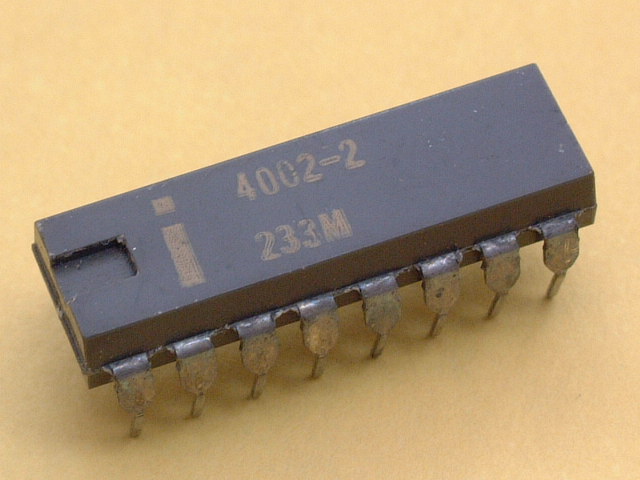

Intel P4002-2 gray plastic package.	Intel P4002-2 gray plastic package.	Intel P4002-2 black plastic package.	Intel 4002-2 grey plastic package.
N.D.C	N.D.C	Philippines 7948	N.D.C NEW!

Pin Configuration
